Cambio - Excellence in Molecular Biology

Oligo Synthesis

Oligo Synthesis : CEPs

Prices quoted are for single packs only. For multiples of the same product please request a quote. Some of Glen's products are hazardous and may be subject to additional shipping charges. Full product information is available on Glen Research's website.

N2-Amino-Modifier C6 dG

N2-Amino-Modifier C6 dG

Glen Research

Catalogue No.DescriptionPack SizePriceQty
10-1529-02N2-Amino-Modifier C6 dG 0.25g £1,100.00 Quantity Add to Order
10-1529-90N2-Amino-Modifier C6 dG 100µmoles £450.00 Quantity Add to Order
10-1529-95N2-Amino-Modifier C6 dG 50µmoles £236.00 Quantity Add to Order

Description

N2-Amino-Modifier C6 dG

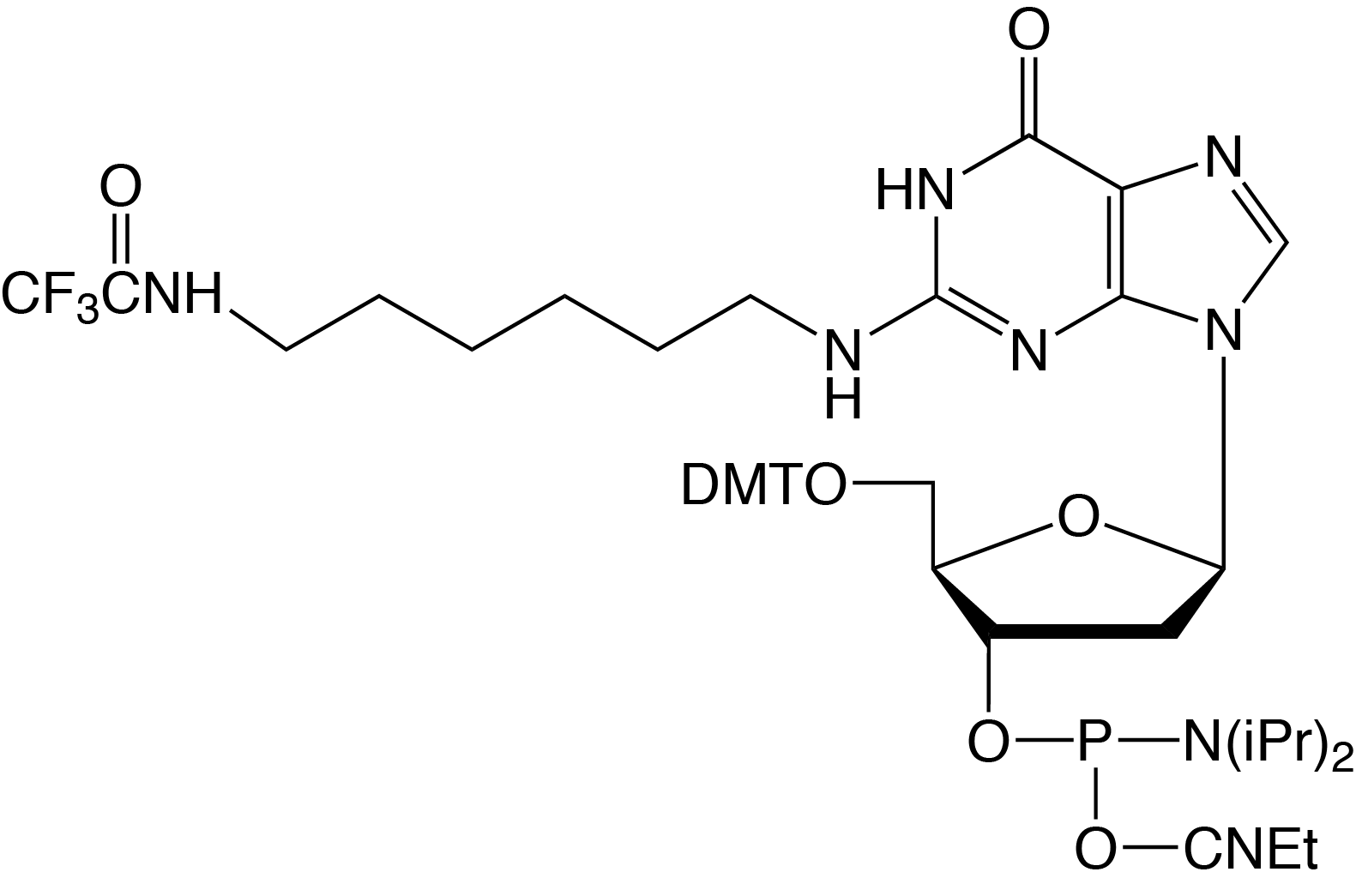

Structure

Catalog Number: 10-1529-xx

Description: N2-Amino-Modifier C6 dG

5'-Dimethoxytrityl-N2-[6-(trifluoroacetylamino)-hex-1-yl]-2'-deoxyGuanosine-
3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Formula: C48H60F3N8O8P M.W.: 965.01 F.W.: 428.38

Diluent: Anhydrous Acetonitrile
Coupling: N2-Amino-Modifier C6 dG reacts in a manner identical to normal phosphoramidites. To prevent side reactions, synthesize using acetyl-protected dC. See Deprotection for further details.
Deprotection: No changes needed from standard method recommended by synthesizer manufacturer. The TFA protecting group is removed during standard ammonium hydroxide deprotection. A minor side reaction during ammonia deprotection can lead to irreversibly capping 2-5% of the amine. This could be significant if multiple additions of the modifier are made. To prevent the reaction, synthesize using acetyl-protected dC and deprotect in 30% ammonia/40% methylamine 1:1 (AMA) at 65°C for 10 minutes.
Storage: Refrigerated storage, maximum of 2-8°C, dry

Stability in Solution: 2-3 days

SEQUENCE MODIFIERS

Sequence Modifiers are designed for use in automated synthesis. The carboxy-dT is hydrolyzed during deprotection and can be coupled directly to a molecule containing a primary amino group by a standard peptide coupling or via the intermediate N-hydroxysuccinimide (NHS) ester. Amino-Modifier dA, Amino-Modifier dC, Amino-Modifier dG and both Amino-Modifier dT products can be added in place of a dA, dC, dG and dT residue, respectively, during oligonucleotide synthesis. Corresponding Amino-Modifier supports can replace their respective deoxynucleoside supports. After deprotection, the primary amine on the C6 analogues is separated from the oligonucleotide by a spacer arm with a total of 7 -10 atoms and can be labelled or attached to an enzyme. The C2 analogue is more suitable for the attachment of molecules designed to react with the oligonucleotide.

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Notes

Technical Notes

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Applications & Benefits

DILUTION/COUPLING DATA

The table below shows pack size data and, for solutions, dilutions and approximate couplings based on normal priming procedures. Please link for more detailed usage information with the various synthesizers.


ABI 392/394
Cat.No. Pack
Size
Grams/
Pack
0.1M Dil.
(mL)
LV40 LV200 40nm 0.2µm 1µm 10µm
Approximate Number of Additions
10-1529-02 0.25grams .25grams 2.59 73 43.8 27.38 19.91 14.6 3.65
10-1529-90 100µmoles .097grams 1 20 12 7.5 5.45 4 1
10-1529-95 50µmoles .048grams .5 3.33 2 1.25 .91 .67 .17
Expedite
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 50nm 0.2µm 1µm 15µm
Approximate Number of Additions
10-1529-02 0.25grams .25grams 3.87 .07 71 44.38 32.27 4.44
10-1529-90 100µmoles .097grams 1.5 .07 23.6 14.75 10.73 1.48
10-1529-95 50µmoles .048grams .75 .07 8.6 5.38 3.91 .54
Beckman
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 30nm 200nm 1000nm

Approximate Number of Additions
10-1529-02 0.25grams .25grams 3.87 .07 72.6 45.38 33

10-1529-90 100µmoles .097grams 1.5 .07 25.2 15.75 11.45

10-1529-95 50µmoles .048grams .75 .07 10.2 6.38 4.64
