Oligo Synthesis

Oligo Synthesis : CEPs

Prices quoted are for single packs only. For multiples of the same product please request a quote. Some of Glen's products are hazardous and may be subject to additional shipping charges. Full product information is available on Glen Research's website.

dI-CE Phosphoramidite

dI-CE Phosphoramidite

Glen Research

Catalogue No.DescriptionPack SizePriceQty
10-1040-02dI-CE Phosphoramidite 0.25g £64.00 Quantity Add to Order
10-1040-90dI-CE Phosphoramidite 100µmoles £27.00 Quantity Add to Order

Description

dI-CE Phosphoramidite

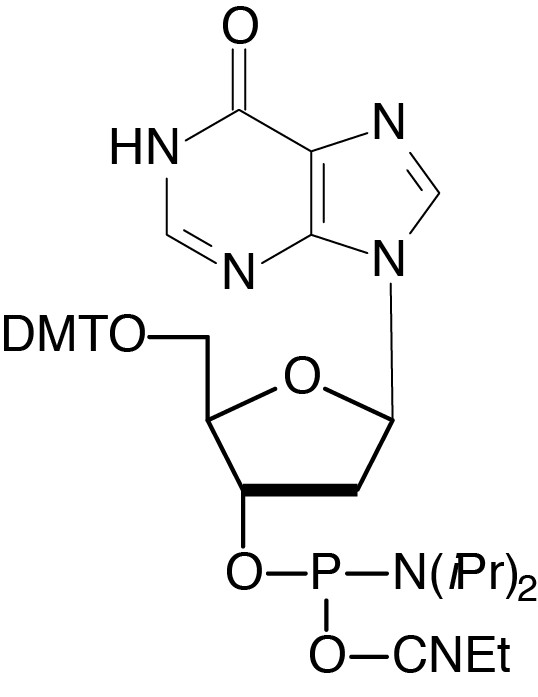

Structure

Catalog Number: 10-1040-xx

Description: dI-CE Phosphoramidite

5'-Dimethoxytrityl-2'-deoxyInosine,3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-
phosphoramidite
Formula: C40H47N6O7P M.W.: 754.79 F.W.: 314.19

Diluent: Anhydrous Acetonitrile
Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
Deprotection: No changes needed from standard method recommended by synthesizer manufacturer.
Storage: Refrigerated storage, maximum of 2-8°C, dry
Stability in Solution: Similar to dA,C,G,T-CE Phosphoramidites

duplex effects

The design of primers is frequently complicated by the degeneracy of the genetic code. Three strategies are now available to confront this problem. In the first, a mixed base addition (N) is used to form the degenerate site. This approach is best if the number of degenerate sites is small. A second option is the use of 2’-deoxyInosine or 2’-deoxyNebularine which exhibit low, but unequal, hydrogen bonding to the other four bases. The third option is the use of a universal nucleoside. In this strategy, the base analog does not hybridize significantly to the other four bases and makes up some of the duplex destabilization by acting as an intercalating agent. 3-Nitropyrrole 2’-deoxynucleoside (M) is the first example of a set of universal bases. Subsequently, 5-nitroindole was determined to be an effective universal base and to be superior to 3-nitropyrrole, based on duplex melting experiments.

The modified bases designated P and K show considerable promise as degenerate bases. The pyrimidine derivative P, when introduced into oligonucleotides, base pairs with either A or G, while the purine derivative K base pairs with either C or T. A dP dK mix also can serve as a mixed base with much less degeneracy than dA dC dG dT (N).

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Protocols

Material Safety Data Sheet

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Applications & Benefits

The design of primers is frequently complicated by the degeneracy of the genetic code.  Three strategies are now available to confront this problem.

  1. A mixed base addition (N) is used to form the degenerate site.  This approach is best if the number of degenerate sites is small.
  2. The use of 2'-deoxyInosine or 2'-deoxyNebularine which exhibit low, but unequal, hydrogen bonding to the other 4 bases.
  3. The use of a universal nucleotide.  In this strategy, the base analog does not hybridise significantly to the other 4 bases and makes up some of the duplex destabilisation by acting as an intercalating agent.

EXTINCTION DATA

Item Nucleoside λMax-1 Emax-1 λMax-2 Emax-2 E260
    (nm) (ml/µmole) nm (ml/µmole) (ml/µmole)
10-1040 dI (Inosine) 249 12.5     7.5

Frequently Asked Technical Question

QUESTION: What is the base-pairing specificity of dI in an oligonucleotide?

RESPONSE:Deoxy-Inosine is often used as a degenerate base in an oligonucleotide probe or primer. This is possible since the structure allows it to base pair with all four bases in various wobble structures. However the base-pairing is not equivalent with each of the 4 naturally occuring bases. The overall preferential order of base-pairing is.

dI-dC > dI-dA > dI-dG = dI-dT

REFERENCE(S):
Martin,F.H. et.al., (1985), Nucleic Acids Res., 13, 8927-8938.
Case-Green,S. C., Southern, E.M., (1994), Nucleic Acids Res., 22, 131-136.


DILUTION/COUPLING DATA

The table below shows pack size data and, for solutions, dilutions and approximate couplings based on normal priming procedures. Please link for more detailed usage information with the various synthesizers.

ABI 392/394
Cat.No. Pack
Size
Grams/
Pack
0.1M Dil.
(mL)
LV40 LV200 40nm 0.2µm 1µm 10µm
Approximate Number of Additions
10-1040-02 0.25grams .25grams 3.31 97 58.2 36.38 26.45 19.4 4.85
10-1040-90 100µmoles .075grams 1 20 12 7.5 5.45 4 1
Expedite
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 50nm 0.2µm 1µm 15µm
Approximate Number of Additions
10-1040-02 0.25grams .25grams 4.94 .07 92.4 57.75 42 5.78
10-1040-90 100µmoles .075grams 1.5 .07 23.6 14.75 10.73 1.48
Beckman
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 30nm 200nm 1000nm
Approximate Number of Additions
10-1040-02 0.25grams .25grams 4.94 .07 94 58.75 42.73
10-1040-90 100µmoles .075grams 1.5 .07 25.2 15.75 11.45
