| 2'-OMe-Pac-A-CE Phosphoramidite |
Catalog Number: 10-3601-xx
Description: 2'-OMe-iPr-Pac-G-CE Phosphoramidite

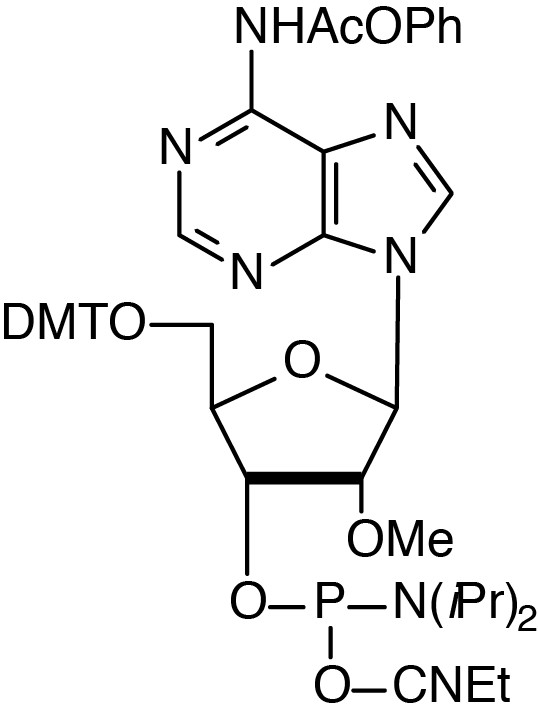

5'-Dimethoxytrityl-N-phenoxyacetyl-Adenosine,2'-O-methyl-3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Diluent: Anhydrous Acetonitrile |
| Coupling: 6 minute coupling time. To avoid any exchange of the iPr-Pac group on the G with acetyl, use the UltraMild Cap Mix A (40-4210-xx/ 40-4212-xx). |
| Deprotection: UltraMILD 0.05M Potassium Carbonate in Methanol, 4 hours at Room
Temperature OR 2 hours at Room Temperature in 30% Ammonium Hydroxide |
| Storage: Freezer storage, -10 to -30°C, dry |
| Stability in Solution: 2-3 days |
UltraMild 2’-OMe-RNA
The use of UltraMild monomers in oligonucleotide synthesis has allowed very sensitive dyes like TAMRA, HEX and Cy5 to be used virtually routinely. The DNA and RNA monomers are currently available and we also provide this set of 2’-OMe-RNA monomers. In our version of this chemistry, we use as protecting groups phenoxyacetyl (Pac) for A, acetyl (Ac) for C, and isopropyl-phenoxyacetyl (iPr-Pac) for G.
It has become clear that acetic anhydride in the conventional capping mix can cause transamidation in situations where an amine protecting group is quite labile. This leads to acetyl protection on the amino group that may be slow to be removed. Consequently, if many dG residues are included in the oligonucleotide, we recommend the use of phenoxyacetic anhydride (Pac2O) in Cap A. This modification removes the possibility of exchange of the iPr-Pac protecting group on the dG with acetate from the acetic anhydride capping mix.
Dilution/Coupling Data
The table below show pack size data and, for solutions, dilution and approximate coupling based on normal priming procedures.
ABI 392/394
| Catalog # | Pack Size | Grams/Pack | 0.1M Dil. (mL) | Approximate Number of Additions |
|---|
| LV40 | LV200 | 40nm | 0.2μm | 1μm | 10μm |
|---|
| 10-3601-02 | 0.25 g | .25grams | 2.72 | 77.33 | 46.4 | 29 | 21.09 | 15.47 | 3.87 |
| 10-3601-05 | 0.5 g | .5grams | 5.45 | 168.33 | 101 | 63.13 | 45.91 | 33.67 | 8.42 |
| 10-3601-10 | 1.0 g | 1grams | 10.89 | 349.67 | 209.8 | 131.13 | 95.36 | 69.93 | 17.48 |
| 10-3601-90 | 100 µmol | .092grams | 1 | 20 | 12 | 7.5 | 5.45 | 4 | 1 |
Expedite
| Catalog # | Pack Size | Grams/Pack | Dilution (mL) | Approximate Number of Additions |
|---|
| Molarity | 50nm | 0.2μm | 1μm | 15μm |
|---|
| 10-3601-02 | 0.25 g | .25grams | 4.06 | 0.07 | 74.8 | 46.75 | 34 | 4.68 |
| 10-3601-05 | 0.5 g | .5grams | 8.13 | 0.07 | 156.2 | 97.63 | 71 | 9.76 |
| 10-3601-10 | 1.0 g | 1grams | 16.26 | 0.07 | 318.8 | 199.25 | 144.91 | 19.93 |
| 10-3601-90 | 100 µmol | .092grams | 1.5 | 0.07 | 23.6 | 14.75 | 10.73 | 1.48 |
If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200
