Cambio - Excellence in Molecular Biology

Oligo Synthesis

Oligo Synthesis : CEPs

Prices quoted are for single packs only. For multiples of the same product please request a quote. Some of Glen's products are hazardous and may be subject to additional shipping charges. Full product information is available on Glen Research's website.

7-deaza-8-aza-dA-CE Phosphoramidite

7-deaza-8-aza-dA-CE Phosphoramidite

Glen Research

Catalogue No.DescriptionPack SizePriceQty
10-1083-027-deaza-8-aza-dA-CE Phosphoramidite 0.25g £1,032.00 Quantity Add to Order
10-1083-907-deaza-8-aza-dA-CE Phosphoramidite 100µmoles £355.00 Quantity Add to Order
10-1083-957-deaza-8-aza-dA-CE Phosphoramidite 50µmoles £186.00 Quantity Add to Order

Description

7-deaza-8-aza-dA-CE Phosphoramidite

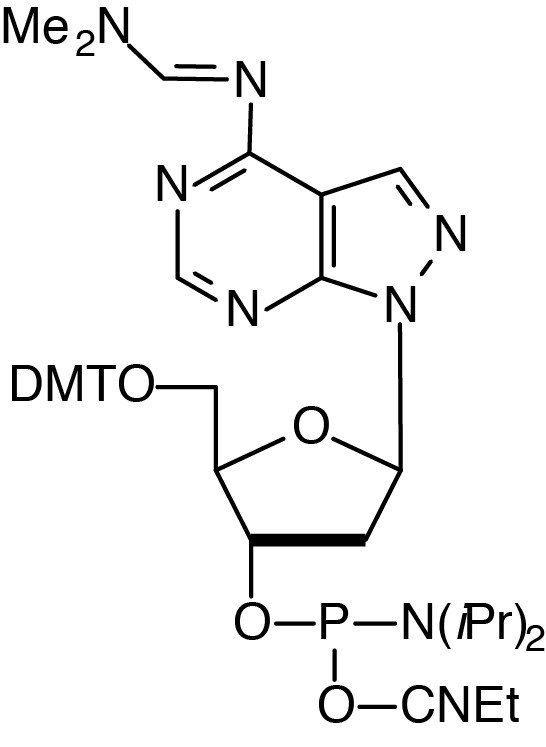

Structure

Catalog Number: 10-1083-xx

Description: 7-deaza-8-aza-dA-CE Phosphoramidite

5'-Dimethoxytrityl-N6-dimethylaminomethylidene-8-aza-7-deaza-2'-deoxyAdenosine,
3'-[(2-cyanoethyl)-(N,N-diisopropyl)]-phosphoramidite
Formula: C43H53N8O6P M.W.: 808.91 F.W.: 313.20

Diluent: Anhydrous Acetonitrile
Coupling: No changes needed from standard method recommended by synthesizer manufacturer.
Deprotection: No changes needed from standard method recommended by synthesizer manufacturer.
Storage: Freezer storage, -10 to -30°C, dry
Stability in Solution: 2-3 days

STRUCTURE/ACTIVITY RELATIONSHIP

The following products are used to investigate the effect on the activity of an oligonucleotide when key structural elements are changed. The 7-deaza purine monomers lack groups critical for hydrogen bonding. 7-Deaza-8-aza-A and 7-deaza-8-aza-G (PPG) monomers are isomers of A and G and have similar electron density. Their presence in oligos is slightly stabilizing relative to A and G. Unlike G, PPG does not lead to aggregation and G-rich oligos can be easily prepared and isolated. 5’-Fluorescein oligos with PPG at the 5’-terminus are much less quenched than the equivalent G oligos. As a purine analogue of Thymidine, 7-deaza-2’-deoxyXanthosine (7-deaza-dX) promises to have interesting effects on DNA structure of triplexes. 7-Deaza-dX also forms a non-standard base pair with a 2,4-diaminopyrimidine nucleoside analogue. Standard nucleobases have an unshared pair of electrons that project into the minor groove of duplex DNA. Enzymes that interact with DNA, polymerases, reverse transcriptases, restriction enzymes, etc., may use a hydrogen bond donating group to contact the hydrogen bond acceptor in the minor groove. 3-Deaza-2’-deoxyadenosine is very interesting in that it maintains the ability for regular Watson-Crick hydrogen bonding to T but is lacking the electron pair at the 3-position normally provided by N3.

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Protocols

MSDS

Glen Report 15.1: MORE AND still MORE NOVEL MINOR BASES

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Notes

Frequently Asked Technical Question

QUESTION: Which should I use - psoralen C2 or psoralen C6?

RESPONSE:Psoralen C2 is designed to crosslink to a T residue adjacent to the 3'-terminus of the opposite strand of double stranded DNA. Psoralen C6 is intended to fulfill the same purpose but, with the longer spacer, crosslinks to the triple strand of triplex DNA.

Max excitation=330nm, observed at max 395nm

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Applications & Benefits

DILUTION/COUPLING DATA

The table below shows pack size data and, for solutions, dilutions and approximate couplings based on normal priming procedures. Please link for more detailed usage information with the various synthesizers.

ABI 392/394
Cat.No. Pack
Size
Grams/
Pack
0.1M Dil.
(mL)
LV40 LV200 40nm 0.2µm 1µm 10µm
Approximate Number of Additions
10-1083-02 0.25grams .25grams 3.09 89.67 53.8 33.63 24.45 17.93 4.48
10-1083-90 100µmoles .081grams 1 20 12 7.5 5.45 4 1
10-1083-95 50µmoles .04grams .5 3.33 2 1.25 .91 .67 .17
Expedite
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 50nm 0.2µm 1µm 15µm
Approximate Number of Additions
10-1083-02 0.25grams .25grams 4.61 .07 85.8 53.63 39 5.36
10-1083-90 100µmoles .081grams 1.5 .07 23.6 14.75 10.73 1.48
10-1083-95 50µmoles .04grams .75 .07 8.6 5.38 3.91 .54
Beckman
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 30nm 200nm 1000nm

Approximate Number of Additions
10-1083-02 0.25grams .25grams 4.61 .07 87.4 54.63 39.73

10-1083-90 100µmoles .081grams 1.5 .07 25.2 15.75 11.45

10-1083-95 50µmoles .04grams .75 .07 10.2 6.38 4.64
