DesthiobiotinTEG Phosphoramidite

DesthiobiotinTEG Phosphoramidite

Glen Research

Catalogue No.DescriptionPack SizePriceQty
10-1952-02DesthiobiotinTEG Phosphoramidite 0.25g £823.00 Quantity Add to Order
10-1952-90DesthiobiotinTEG Phosphoramidite 100µmoles £336.00 Quantity Add to Order
10-1952-95DesthiobiotinTEG Phosphoramidite 50µmoles £177.00 Quantity Add to Order

Description

DesthiobiotinTEG Phosphoramidite

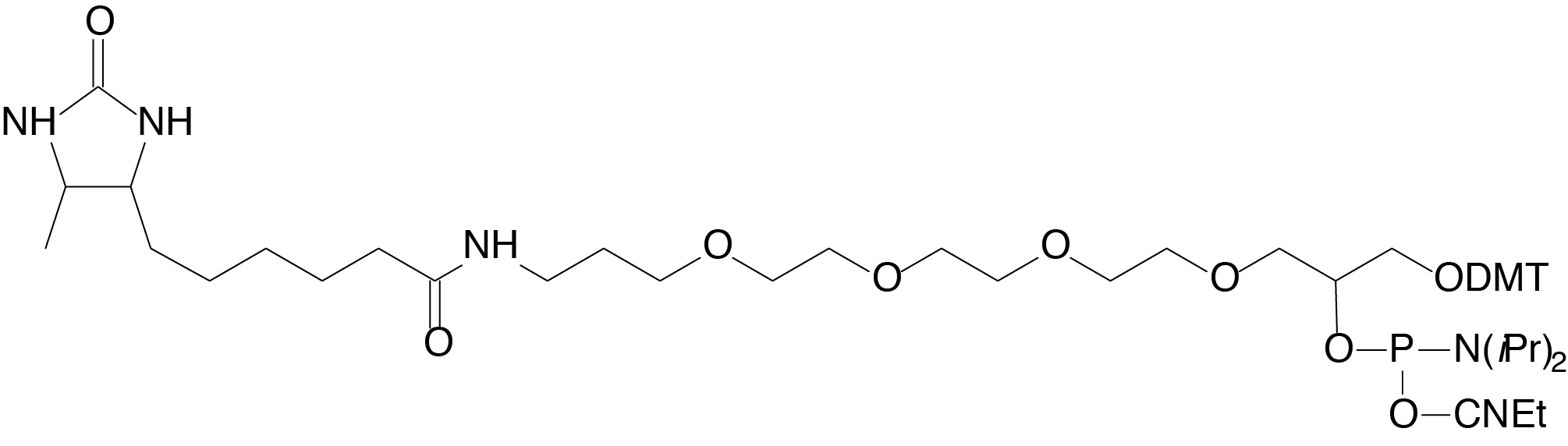

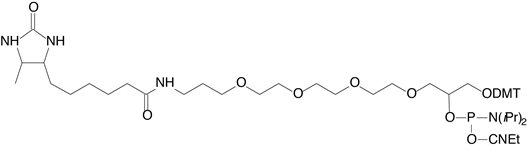

Structure

Catalog Number: 10-1952-xx

Description: DesthiobiotinTEG Phosphoramidite

1-Dimethoxytrityloxy-3-O-(N-desthiobiotinyl-3-aminopropyl)-triethyleneglycolyl-
glyceryl-2-O-(2-cyanoethyl)-(N,N-diisopropyl)-phosphoramidite
Formula: C52H78N5O11P M.W.: 980.19 F.W.: 539.56

Diluent: Anhydrous Acetonitrile
Add fresh diluent to product vial to recommended concentration and swirl vial occasionally over several minutes until product is completely dissolved. (Some oils may require between 5 and 10 minutes.) Use care to maintain anhydrous conditions. In case of transfer to alternate vial type, ensure recipient vial has been pre-dried. For more information, see http://www.glenres.com/Technical/TB_ABITransfer.pdf.
Coupling: 12-15 minute coupling time. To maintain label yield, carry out the synthesis DMT-On.
Deprotection: No changes needed from standard method recommended by synthesier manufacturer. To maintain label yield, remove the 5'-DMT after ammonium hydroxide deprotection.
Storage: Freezer storage, -10 to -30°C, dry
Stability in Solution: 2-3 days

Biotin-dT can replace dT residues within the oligonucleotide sequence. 5’-Biotin phosphoramidite can be added ONLY ONCE to the 5’-terminus of an oligonucleotide. However, the DMT group on the biotin can be used in RP cartridge and HPLC purification techniques. PC Biotin is a photocleavable 5’-biotin phosphoramidite. BiotinTEG CPG and Protected BiotinLC Serinol CPG are designed for the direct synthesis of oligonucleotides containing biotin at the 3’ terminus.

Desthiobiotin is a biotin analogue that exhibits lower binding to biotin-binding proteins such as streptavidin. This biotin analogue is lacking the sulfur group from the molecule and has a dissociation constant (Kd) several orders of magnitude less than biotin/streptavidin. As a result, biomolecules containing desthiobiotin are dissociated from streptavidin simply in the presence of buffered solutions of biotin. We offer desthiobiotinTEG phosphoramidite and the corresponding CPG.

ABI-style vials and columns are supplied unless otherwise requested.

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Protocols

MSDS

Glen Report 16.2: STILL MORE NEW PRODUCTS

If you cannot find the answer to your problem then please contact us or telephone +44 (0)1954 210 200

Applications & Benefits

DILUTION/COUPLING DATA

The table below shows pack size data and, for solutions, dilutions and approximate couplings based on normal priming procedures. Please link for more detailed usage information with the various synthesizers.

ABI 392/394
Cat.No. Pack
Size
Grams/
Pack
0.1M Dil.
(mL)
LV40 LV200 40nm 0.2µm 1µm 10µm
Approximate Number of Additions
10-1952-02 0.25grams .25grams 2.55 71.67 43 26.88 19.55 14.33 3.58
10-1952-90 100µmoles .098grams 1 20 12 7.5 5.45 4 1
10-1952-95 50µmoles .049grams .5 3.33 2 1.25 .91 .67 .17
Expedite
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 50nm 0.2µm 1µm 15µm
Approximate Number of Additions
10-1952-02 0.25grams .25grams 3.81 .07 69.8 43.63 31.73 4.36
10-1952-90 100µmoles .098grams 1.5 .07 23.6 14.75 10.73 1.48
10-1952-95 50µmoles .049grams .75 .07 8.6 5.38 3.91 .54
Beckman
Cat.No. Pack
Size
Grams/
Pack
Dilution
(mL)
Molarity 30nm 200nm 1000nm

Approximate Number of Additions
10-1952-02 0.25grams .25grams 3.81 .07 71.4 44.63 32.45

10-1952-90 100µmoles .098grams 1.5 .07 25.2 15.75 11.45

10-1952-95 50µmoles .049grams .75 .07 10.2 6.38 4.64
